There may never have been an amp boasting such a lofty and pure sound in the entire history of VOX. The VOX Hand-Wired Series relies on the painstaking technique of turret board hand-wiring a method requiring a high level of skill and craftsmanship is used, resulting in wiring thats beautiful in its artistry, ensuring an efficient signal path with minimal loss and no restriction in amplitude. In the Hand-Wired Series, tubes, transformers, speakers, chassis, and custom parts all join together in an ideal state to deliver the richest and most powerful sonic experience the ultimate amp. Not bound by tradition, the VOX Hand-Wired Series also provides a variety of new functions that keep pace with the needs of todays artists. Offering a rich variety of tonal shadings and a broad model lineup, the enormous potential of the VOX Hand-Wired Series will reveal itself in any musical scenario.
Key Features and Product Highlights
Hand-wired turret board construction
Birch-ply cabinets featuring solid bracing and a natural high frequency diffuser
All-tube design
ECC83/12AX7 preamp tubes (x3)
EL84 power tube quartet; (AC30 models); EL84 Duet (AC15 models)
GZ34 rectifier (AC30 models); EZ81 rectifier (AC15 models)
Fitted with matched Ruby Tubes that provide extended dynamic range
Traditional VOX two-channel design.
Top Boost and Normal. High and Low inputs for each channel
The Normal channel provides an additional BRIGHT switch.
The top boost channel provides a HOT/COOL switch to achieve even more gain
Master Volume/BYPASS switch completely bypasses the Master Volume section
OP mode switch cut the amps Output Power level in half
Vintage fawn-colored vinyl, reminiscent of the 1960 classic AC30
Choose either Celestion Alnico Blue or Celestion G12M Greenback
VFS1 footswitch controlls the Top Boost channel’s HOT/COOL switch
A premium, custom-fit dust cover is included with every model

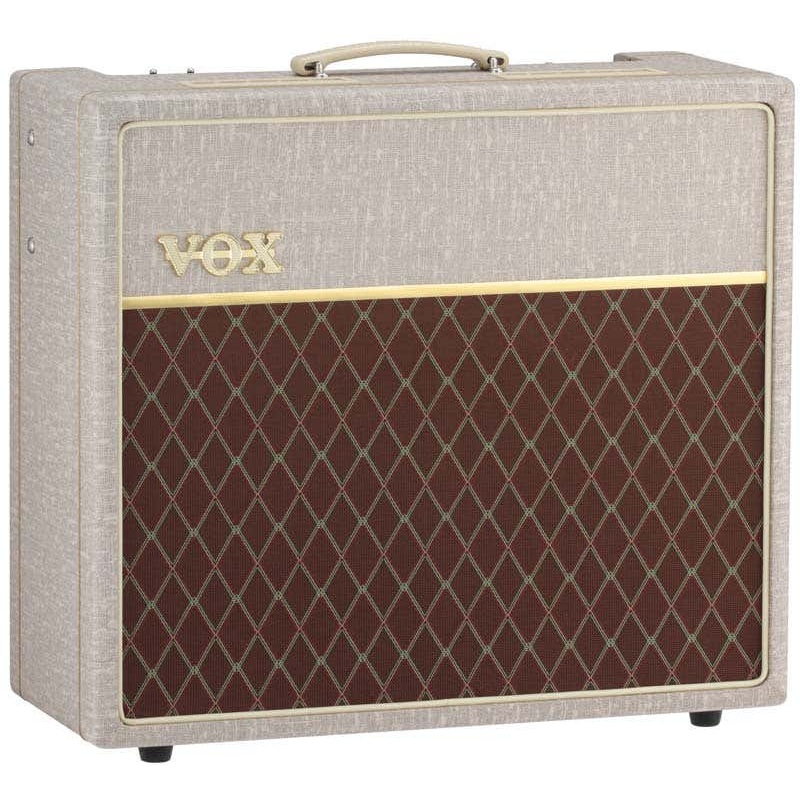

AC15HW1
Output Power: 15 Watts RMS into 8/16 Ohms
Tube Complement: Preamp: ECC83/12AX7 (x3), Power amp: EL84 (x2), Rectifier: EZ81
Speakers: 12 Celestion G12M Green Back (x1); 16 Ohm
Inputs:
NORMAL Channel Jacks: HIGH (x1); LOW (x1)
TOP BOOST Channel Jacks: HIGH (x1); LOW (x1)
FOOT SWITCH Jack
Outputs: External Speaker Jack, Extension Speaker Jack
Dimensions (W x D x H): 610 x 260 x 550 mm / 24.02 x 10.24 x 21.65 inches
Weight: 22.2 kg / 48.9 lbs.
Included items: Power cable, VFS1 footswitch, Dust cover
