INPUT:18V2A
OUTPUT1-8:9V 500MA
OUTPUT9-12:6V~18V 500MA ADJUSTABLE
SPECIFICATIONS
| main body SIZE | 190*70*30mm |
| main body WEIGHT | 356g |
| PACKAGE SIZE | |
| PACKAGE WEIGHT | |
| INPUT | 18V2A |
| OUT POWER | 27WMAX |
| OUT CHANNEL | 12 |
| OUTPUT 1-8 | 9V500mA |
| OUTPUT9-12 | 6V~18V 500mA |
| Short/overload protection |
YES |
| ISOLATED | FULLYISOLATED |

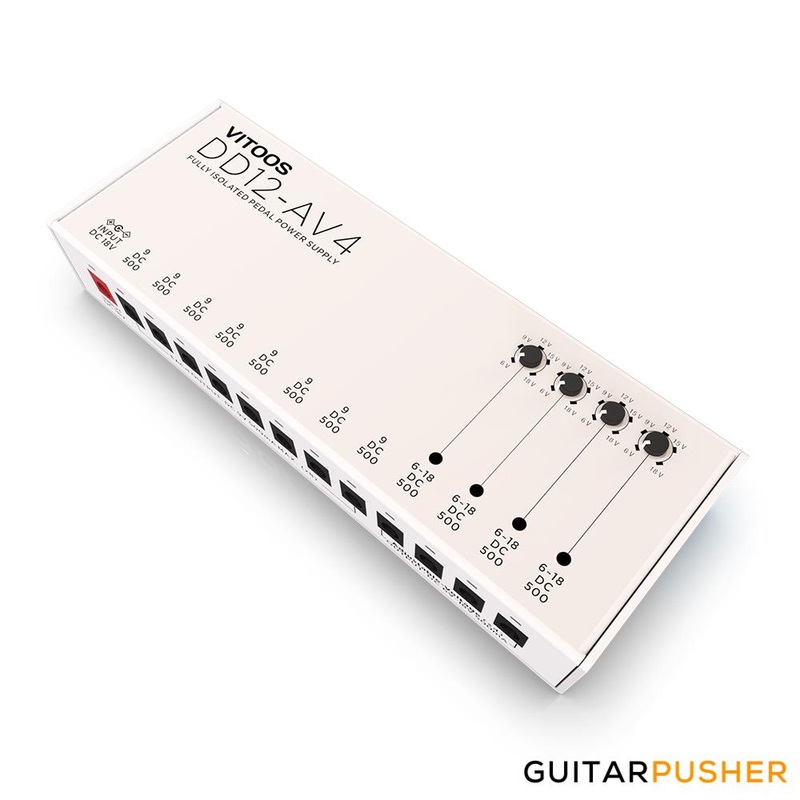

DD12-SV3VSDD12-AV4
| DD12-SV3 | model | DD12-AV4 |
| 12 | channel | 12 |
| 12V3A | input | 18V2A |
| 36W | Wattage | 36W |
| 9 | Includes 9V output | 8 |
| 3* 9V/12V/18V | Adjustable voltage | 4* 6V~18V |
| 190*70-30mm | size | 190*70*30mm |
| 356g | weight | 356g |
INCLUSIONS
1 x AC to DC Adapter 18V2A (negative polarity on the inside)
1 x Straight to Right-angled 30cm
12 x Straight to Right-angled 60cm
1 x Straight to Right-angled 90cm
1 x DC Voltage Doubler 2 Straight to 1 Straight male
1 x DC Current Doubler 2 Right-angled to 1 Straight male
1 x Battery clip on 9V battery Straight male (negative polarity on the inside)
1 x Polarity conversion Right-angled male to Straight female 15cm
4 x HOOK& LOOP Straps
1 x Cable Locker Set
