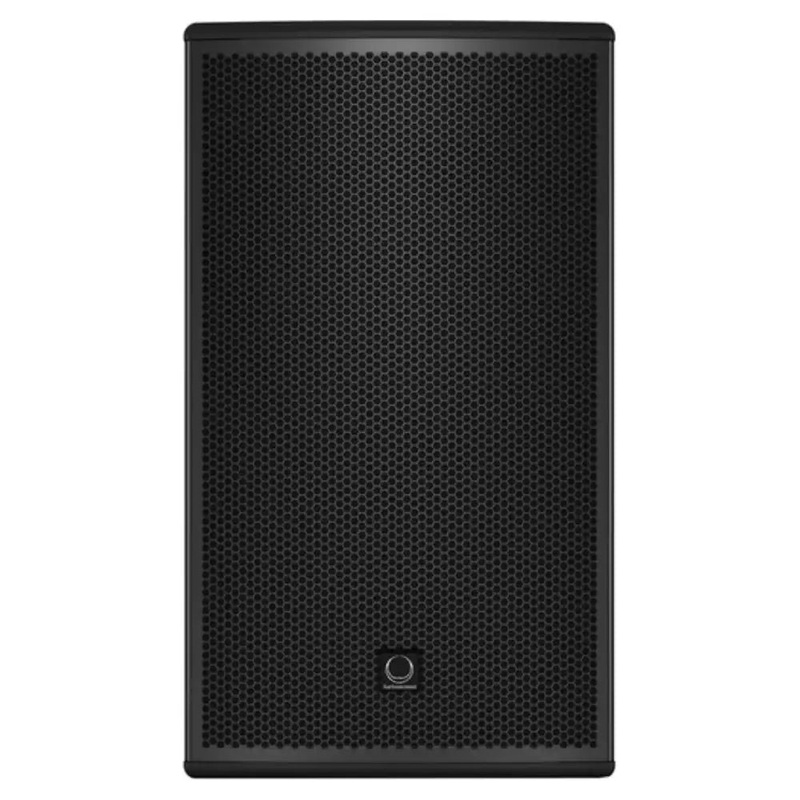

TurboSound NuQ122AN

TurboSound NuQ122AN

The 2 way full range NuQ122-AN is a 2,500 Watt 12″ powered loudspeaker system that is ideally suited for a wide range of portable and fi xed installation speech and music sound reinforcement applications. Designed to work individually without a controller, the NuQ122-AN provides optimal performance for FOH, sidefill and delay line loudspeakers, and is an exceptional choice for wedge monitoring applications. It also offers the flexibility to accommodate venue-specific requirements for install applications.

TheNuQ122loudspeaker features a 12″ low frequency driver with a low mass voice coil for improved transient response and an aluminium dome 1″ neodymium high frequency compression driver, which is mounted on a 70 horizontal by 70 vertical dispersion low distortion waveguide.

Output power for the NuQ122-AN is provided by means of an efficient and lightweightKLARK TEKNIK2,500-Watt Class-D power amplifier. A sophisticated, but easy to useKLARK TEKNIKDigital Signal Processor (DSP) provides dynamic EQ for impressive full range response at low volume levels and transparent limiting for clarity at high output levels – and for long-term reliability.

On the rear panel of the amplifier module, the user interface’s LCD display and single rotary encoder provide intuitive access to: position compensation, user EQ control, subwoofer integration and signal routing features. In addition to the balanced XLR input, an XLR output is provided for daisy-chaining more active loudspeakers or for use with active subwoofers. An onboard USB port provides access for remote control of the NuQ122-AN via PC computer, as well as DSP firmware updates.

ULTRANET connectivity is provided by two locking etherCON* connectors. Up to 16 independent channels of 24-bit digital audio and control data are transmitted via a single CAT5 cable between compatible digital devices – including mixers, I/O stage boxes, powered loudspeakers and personal monitoring systems. Simplified cable routing and ease of setup translate directly into significant time saved during installation.

Finished in a highly durable semi matt black paint, the trapezoidal cabinet is constructed from 15 mm (5/8″) birch plywood-and includes a rugged powder coated perforated steel mesh grille. Multiple threaded rigging points are provided for suspension in any orientation. The NuQ122-FY flying yoke kit provides added flexibility in permanent install applications (available separately). The NuQ122-AN also features a 35 mm socket for standard pole mounting – plus integrated handles for convenient transport. Mains power input is provided via a Neutrik powerCON* connector.

Features:

• 2 way full range powered loudspeaker for portable PA and installation applications
• 2,500 Watt power featuring KLARK TEKNIK Class-D technology
• KLARK TEKNIK Digital Signal Processing for total system control
• ULTRANET digital audio networking connects to mixers and other sources
• 12″ low frequency driver with low mass voice coil for improved transient response
• Aluminium dome 1″ neodymium motor compression driver
• Low distortion waveguide provides 70 H x 70 V dispersion
• Fully featured user interface with LCD display for ease of navigation

• PC remote control software downloadable at turbosound.com
• 15 mm (5/8″) birch plywood enclosure with hard wearing semi matt black paint finish
• Rugged powder coated perforated steel mesh grille
• Integral 35 mm pole mount and handles
• Multiple internal rigging points allow bracket mount and suspension in any orientation
• Mains input on Neutrik powerCON* connector
• 3-Year Warranty Program*
• Designed and engineered in England
