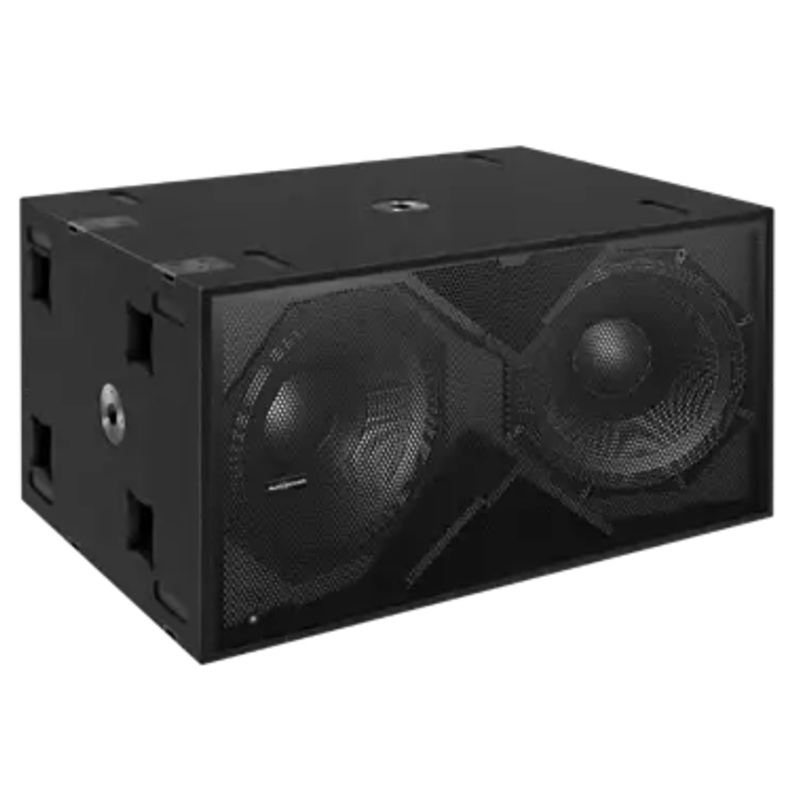

Audiocenter K-LA218-DSP
K-LA218-DSP, an active DSP-controlled Dual 18 subwoofer, is designed to meet the high requirements of touring performance, rental and fixed installation.
The LF drivers of K-LA218-DSP are two customized AUDIOCENTER 18 drivers (4 voice coil).
User Selectable 3 low-pass filters (80Hz, 100Hz, 120Hz) in K-LA218-DSP are available for the users to choose according to different environments and music styles.
K-LA218-DSP is a perfect match for all AUDIOCENTER full range speakers, extending band width of frequency response and delivering powerful, impressive, punchy bass sound.
K-LA218-DSP system is combined in modularization, which is suitable for any performance venues. It can also be used together with other speakers of other brands.
|
Type |
Active DSP-controlled Compact Subwoofer |
|
Frequency Response (-6dB anechoic chamber) |
32Hz-150Hz |
|
Muximum Calculated SPL/1M |
140dB |
|
LF Driver |
Customized AUDIOCENTER ferrite driver, 4 voice coil |
|
AMPLIFIER |
|
|
Amplifier Circuitry |
Class D |
|
Power(RMS standards) |
2800W |
|
Frequency Response(1W 8 2ch) |
20Hz-6KHz(0.5dB) |
|
Intermodulation Distortion |
0.05% |
|
Total Harmonic Distortion |
0.05% |
|
Protection |
DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, under voltage protection |
|
Cooling System |
Cooling with fans |
|
DSP |
|
|
Processor |
96KHz signal sampling frequency, 56bit precision |
|
Presets |
80Hz, 100Hz, 120Hz |
|
Crossover |
Controlled by DSP |
|
Output/Input |
|
|
Signal Input |
1NEUTRIK female XLR |
|
Signal Output |
1NEUTRIK male XLR |
|
Power Input |
Powercon NAC3MPA |
|
Working Voltage |
85V-265V 50Hz (60Hz) |
|
Cabinet |
|
|
Cabinet Material |
Russian birch plywood CNC made |
|
Cabinet Color |
Black and white available, can be customized according to the RAL code |
|
Dimension(WHD) |
1080595760mm |
|
Net Weight |
101.0Kg |
