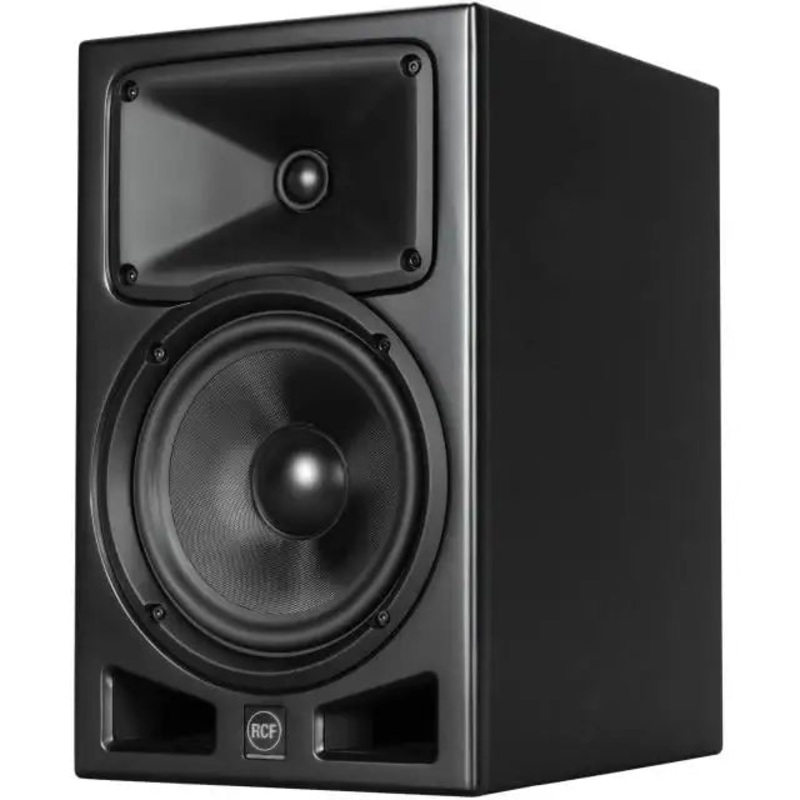

AYRA PRO8PROFESSIONAL ACTIVE TWO-WAY STUDIO MONITORS

• 45 20 KHZ FREQUENCY RESPONSE
• 0 PHASE RESPONSE
• 100W + 40W CLASS-D AMPLIFIERS
• 8 COMPOSITE FIBERGLASS WOOFER

• 45 20 kHz Frequency Response
• 0 Phase Response
• 100W + 40W Class-D Amplifiers
• 8 Composite Fiberglass Woofer
• 1 ferrofluid cooled Soft Dome tweeter
• RCF Precision Waveguide
• DSP Processing with FiRPHASE
• Low distortion frontal Vented Ports

AYRA PRO8 studio monitor works perfectly in any listening environment, whether large or small production facilities, with absolute clarity. It delivers accurate monitoring and provides the engineer or producer with a neutral tool to analyze recordings and optimize the mix; for this reason, we call it PRO. Featuring a dedicated powerful internal DSP that optimizes frequency response and dynamics together with the exclusive RCF FiRPHASE processing and selected components, the AYRA PRO is the first Studio Monitor in its class to boast an outstanding 0 phase response.

PART NUMBER:

• 13000599
  AYRA PRO8
  EU
  EAN 8024530016913
• 13000650
  AYRA PRO8
  US
  EAN 8024530017385
• 13000651
  AYRA PRO8
  UK
  EAN 8024530017392
• 13000652
  AYRA PRO8
  JP
  EAN 8024530017408

POWERFUL, COMPOSITE-CONE WOOFER

The AYRA PRO low-frequency drivers are accurately designed for a tight and true reproduction. The voice coil winding length is optimized for an extended low-frequency range. The composite fiberglass membrane cone design is the best choice for rigidity, damping and performance durability.

POTENT POWER AMPLIFIERS

Focus your creativity on your music at any volume. All AYRA PRO models are provided with high power and low distortion Two Class-D True Active low distortion amplifiers; the internal limiters will protect you from extreme clippings that can damage the transducers.

A NEW PERSPECTIVE ON LINEARITY

AYRA PRO is the first Studio Monitor in its class to boast an outstanding 0 phase response.
All models are designed with FiRPHASE, a proprietary and advanced FIR filtering technology, conceived for delivering transparent sound, absolute clarity and perfect stereo images to the listener. A dedicated powerful internal DSP optimizes frequency response and dynamics with exclusive RCF FiRPHASE processing.

SPECIFICATIONSAcoustical specificationsFREQUENCY RESPONSE:45 Hz 20000 HzMAX SPL @ 1M:111 dBHORIZONTAL COVERAGE ANGLE:110VERTICAL COVERAGE ANGLE:70TransducersDOME TWEETER:1.0” neo, 1.0” v.cWOOFER:8”, 1.5” v.cInput/Output sectionINPUT SIGNAL:bal/unbalINPUT CONNECTORS:XLR, Jack, RCAINPUT SENSITIVITY:-2 dBu/+4 dBuProcessor sectionCROSSOVER FREQUENCIES:2000HzLIMITER:Soft LimiterCONTROLS:HF Adjust -1dB,0,+1dB LF Adjust -2dB,0,+2dBPower sectionTOTAL POWER:280 W Peak, 140 W RMSHIGH FREQUENCIES:80 W Peak, 40 W RMSLOW FREQUENCIES:200 W Peak, 100 W RMSCONNECTIONS:XLR, Jack, RCAStandard complianceCE MARKING:YesPhysical specificationsCABINET/CASE MATERIAL:MDFCOLOR:Black – RAL 9005SizeHEIGHT:410 mm / 16.14 inchesWIDTH:253 mm / 9.96 inchesDEPTH:320 mm / 12.6 inchesWEIGHT:8.6 kg / 18.96 lbsShipping informationsPACKAGE HEIGHT:510 mm / 20.08 inchesPACKAGE WIDTH:416 mm / 16.38 inchesPACKAGE DEPTH:329 mm / 12.95 inchesPACKAGE WEIGHT:9.5 kg / 20.94 lbs
