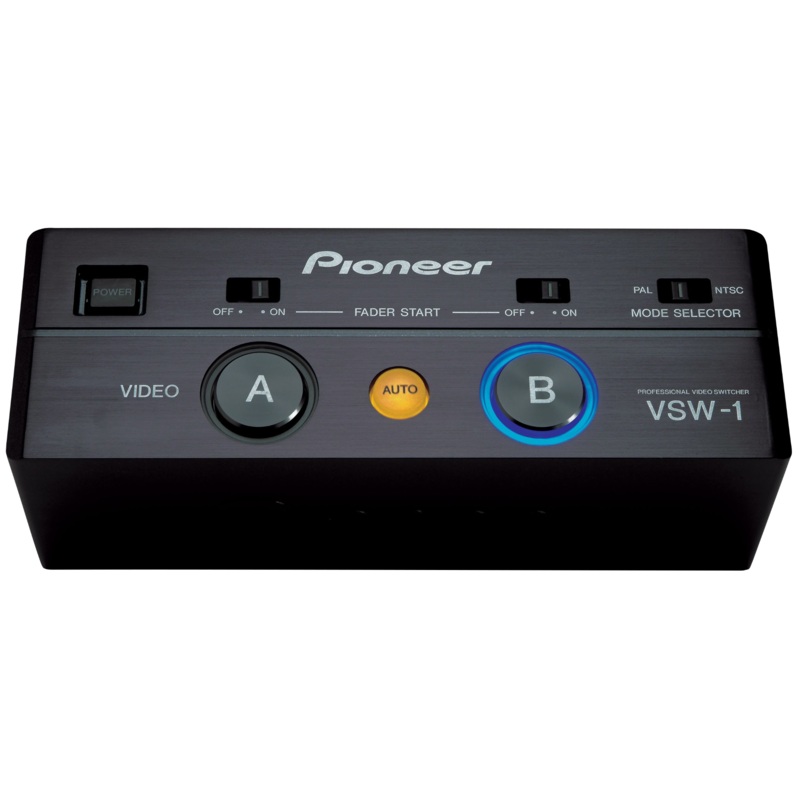

Pioneer VSW-1 Pro Video Switcher Automatic Video Switcher for DVJ-X1 System

Switch Video Easily with the Pioneer VSW-1 Pro Video Switcher Automatic Video Switcher for DVJ-X1 System

The VSW-1 is simple in its design and extremely easy to use, ensuring that DVJs are able to mix audio/video content from separate sources without relying upon multiple independent devices or needing another artist in the DVJ booth.

This Video Switcher gives performers more freedom in the mix because they can automatically switch video sources (by pressing the red “Auto” button) when using the familiar Fader Start capability found in all of Pioneer’s Pro DJ mixers.

The VSW-1 video switcher gives top DVJs the flexibility they need to take full advantage of Pioneer’s revolutionary DVJ-X1.

SPECIFICATIONS

General

• Power: AC110-120 V / 220 – 240 V
• Power consumption: 9 W
• Operating temperature: + 5C to + 35C
• Operating humidity: 5 -85 % R.H. (without precipitation)
• Weight: 3.09 lbs
• External dimensions (W x D x H): 9.84 x 3.54 x 3.39 in

Video input section (input level/impedance)

• Component video: BNC connectors x 3 (2 systems)
• Y: 1 Vp-p / 75 Ohm
• CB/PB: 0.7 Vp-p / 75 Ohm
• CR/PR: 0.7 Vp-p / 75 Ohm
• S-Video: S connector (2 systems)
• Y: 1 Vp-p / 75 Ohm
• C: 0.286 Vp-p / 75 Ohm
• Composite video: RCA connector (2 systems) 1 Vp-p / 75 Ohm

Video output section (output level/impedance)

• Component video: BNC connectors x 3 (1 system)
• Y: 1 Vp-p / 75 Ohm
• CB/PB: 0.7 Vp-p / 75 Ohm
• CR/PR: 0.7 Vp-p / 75 Ohm
• S-Video: S connector (1 system)
• Y: 1 Vp-p / 75 Ohm
• C: 0.286 Vp-p / 75 Ohm
• Composite video: RCA connector (1 system) 1 Vp-p / 75 Ohm

Sync signal output section

• Sync output: BNC connector (2 systems) 1 Vp-p / 75 Ohm
• Supported video modulation systems: NTSC/PAL

Other connectors

• Control input: minijack (3.5 dia) 2 systems
• Control output: minijack (3.5 dia) 2 systems

Manufacturer:Pioneer DJ
Model:VSW-1
SKU:I170022-1-WHXC
