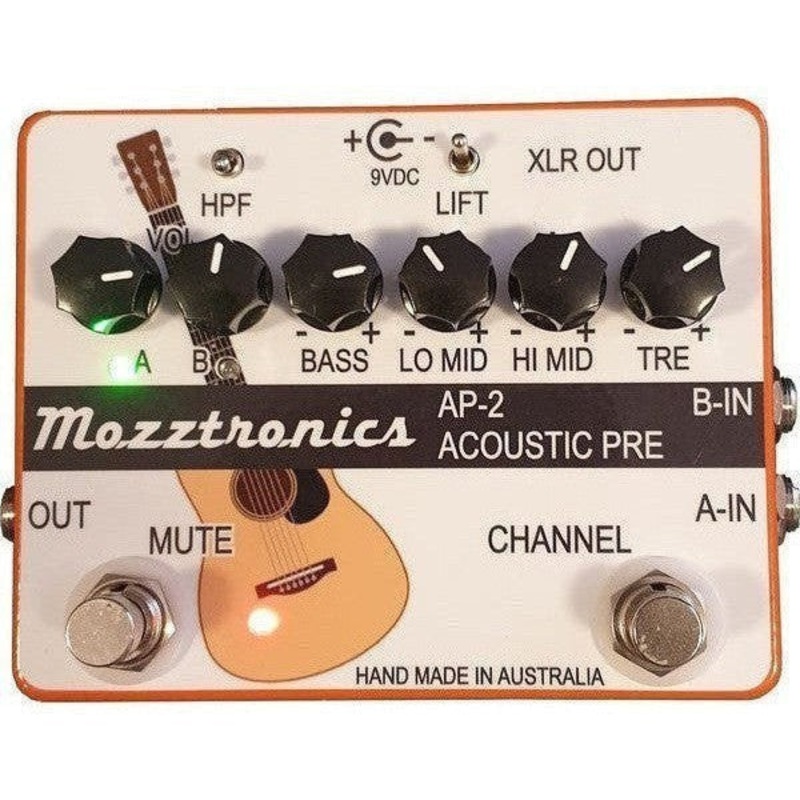

Mozztronics AP-2 Dual Channel Acoustic Preamp Pedal

The Mozztronics AP-2 is a powerful and flexible dual-channel acoustic preamp and DI pedal built specifically for musicians who demand clean, detailed tone and professional-grade control. Handcrafted in Melbourne, Australia, the AP-2 was originally developed for Mick Thomas (Weddings, Parties, Anything) and is ideal for guitarists, mandolin players, or anyone using piezo-equipped acoustic instruments. Its compact design eliminates the need for separate DI boxes or EQ pedals, delivering two independent channels with dedicated volume controls and a shared 4-band EQ.

Built entirely with an all-analogue signal path, the AP-2 delivers pristine tone without coloration. Fine-tune your sound with the BASS, LOW MID, HIGH MID, and TREBLE controls, plus a 100Hz high-pass filter to reduce low-end rumble. Switch between instruments effortlessly using the CHANNEL footswitch, and engage the MUTE footswitch to silence the XLR output while keeping the 1/4″ output liveperfect for quick changes during a gig. Whether on stage or in the studio, the AP-2 ensures precise tone shaping and reliable signal delivery.

• Handbuilt dual-channel acoustic preamp and DI pedal

• Independent volume controls for two instruments

• 4-band EQ with High Pass Filter for tonal precision

• MUTE footswitch silences XLR output while leaving 1/4″ live

• 100% analogue signal path for uncompromised tone

Specs

• Channels: 2 (with independent volume controls)

• EQ: 4-band EQ (BASS 50Hz, LO MID 350Hz, HI MID 4kHz, TREBLE 15kHz)

• Filter: High Pass Filter at 100Hz

• Outputs: Balanced XLR DI with ground lift; 1/4″ output

• Footswitches: CHANNEL (switch between inputs), MUTE (XLR mute)

• Construction: Handbuilt in Australia

• Power: 9V DC (Boss-style 2.1mm center-negative, not included)

• Signal Path: 100% analogue
