KNA SG-2 Steel-string / Acoustic Guitar PICKUP (SG2)

Portable bridge-mounted piezo with volume control for steel-string acoustic guitar

Handcrafted high-quality pickups in Europe

100% Organic Tone / True Acoustic Sound / Handcrafted Voice

Natural Sounding Solutions for Acoustic Instruments

1(ONE) YEAR LOCAL WARRANTY / LOCALLY SHIPPED FROM SINGAPORE/ SINGAPORE EXCLUSIVE DEALER.

With onboard volume control, SG-2 is a perfect choice in a piezo pickup for guitar. Its an acoustic bridge pickup that transfers the natural sound of your instrument without requiring modification.

SG-2 installs safely and securely between the bridge saddle and pins, held in place by the tension of tuned strings.

Install with no modification

SG-2 installs safely and securely between the bridge saddle and pins, held in place by the tension of tuned strings.

Onboard volume controlPlayers can control their output signal while onstage or in the studio, right from the pickup-mounted volume knob.Wood caseThe piezo element is encased in elegant and stylish mahogany. The lightweight assembly offers maximum tonal sensitivity.Natural Sound

SG-2 has a passive design that reproduces the natural sound of the instrument with no need for a battery.

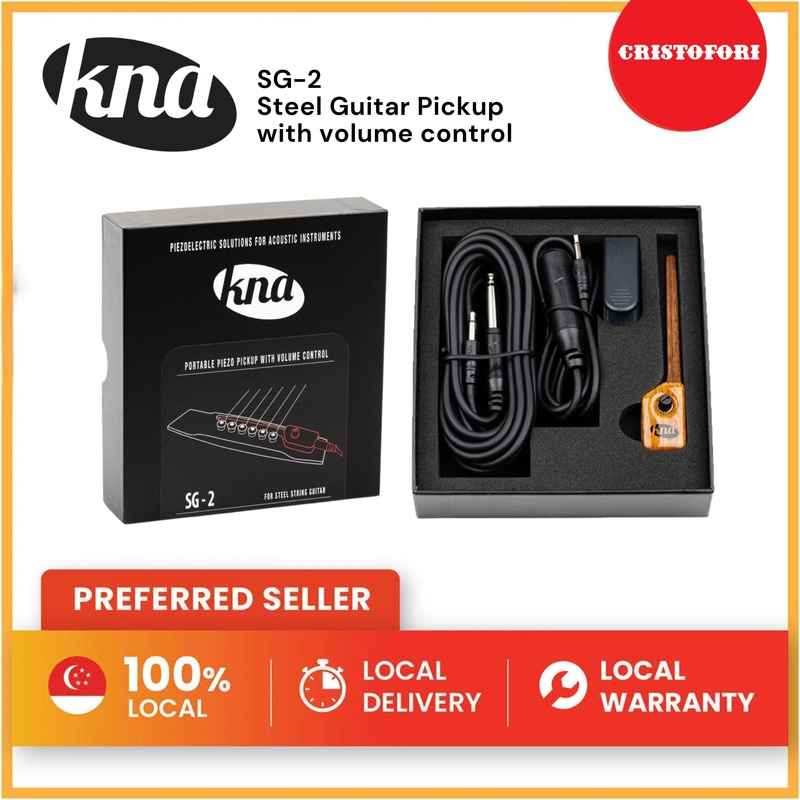

Complete set

Two cables are included a 9-ft. 1/8″ to 1/4″ and a 3-ft. 1/8″ to female 1/4″ jumper with safety clip to connect with your instrument cable.

Instructions
1Loosen the strings of your guitar. The pickup will be inserted between the bridge pins and the saddle. The bridge saddle should have a minimum of 2.5mm (0.098″) height on the treble side to allow room for pickup placement and for it to function properly.

2Starting with the narrow end, slide the pickup between the bridge pins and the saddle. Move the pickup from the treble side up to the bass side until the end rests below the last string.
With the SG-2 in place, tune the instrument normally, making sure the bridge pins remain properly seated

3Press the top button to open the safety clip. Insert your instrument cable into the opening and release the button.

4Hold the pickup head securely when attaching and detaching the cable.
Attach the clip to a suitable part of your instrument strap, belt or belt loop. The jumper cable and safety clip will protect your pickup from accidental damage caused by the cable pulling on the head of the pickup.

Enjoy your new pickup!

Video Review

Specifications
Weight	5.85g. / 0.21oz
Wood	Mahogany
Maximum Impedance	500
Cables
Jumper cable with safety clip	1meter / 3′
Amp cable	3meter / 9′
Measurements
Specified part	Letter	Size in MM (from*)	Size in MM (to*)	Size in INCH (from*)	Size in INCH (to*)
Transducer length	a	67,4	67,5	2,654	2,657
Jack housing length	b	32,5	32,6	1,280	1,283
Total pickup length	c	100,0	–	3,937	–
Transducer width at 6th string	d	4,3	4,4	0,169	0,173
Transducer width at 1st string	e	6,5	6,6	0,256	0,260
Jack housing width	f	19,1	19,2	0,752	0,756
Active signal transfer area length	g	60,0	–	2,362	–
Transducer thickness	h	1,6	1,7	0,063	0,067
Jack housing height without potentiometer	i	10,7	10,8	0,421	0,425
Jack housing height with potentiometer	j	16,3	16,4	0,642	0,646
*KNAhandmade pickups may vary slightly in size due to the nature of the building

=======================================================
