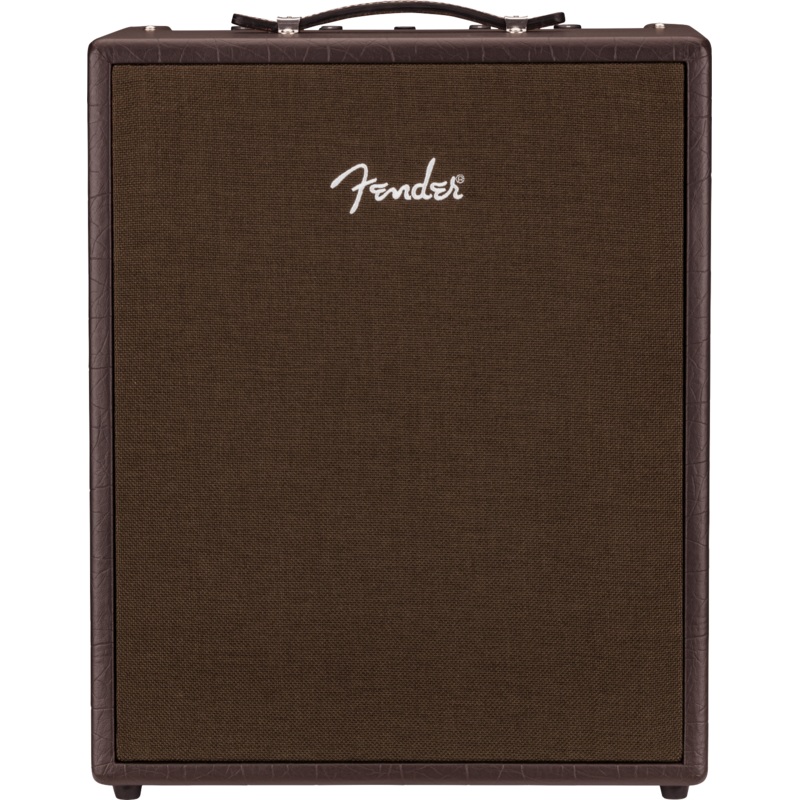

Fender Acoustic SFX II

ITEM SHOWN:
Acoustic SFX II, 120V
MODEL #:
2314500000
UPC #:
885978429837

The Acoustic SFX II amplifier delivers best-in-class performance for acoustic guitar and vocals. This powerful, portable system has two channels designed for instrument or microphone use, each with studio-quality effects enhanced by our proprietary Stereo Field Expansion technology for room-filling, more-than-stereo imaging. Bluetooth wireless audio streaming and a 90-second looper make it perfect for solo shows.

FEATURES
Stereo Field Expansion (SFX) technology for room-filling “more-than-stereo” imagery
90-Second Looper with Record/Dub, Play/Stop, and Undo buttons
Bluetooth Pairing for audio streaming from phones and tablets
Universal voltage for global use

General
SERIESAcoustic Series
COLORDark Brown
AMPLIFIER TYPEDigital
COUNTRY OF ORIGINCN

Electronics
CONTROL PANELChannels 1 and 2: Volume, Low EQ, Mid EQ, High EQ, Effects Level, Effects Select, Phase Switch (Separate Controls For Each Channel); Looper Controls: Rec/Dub, Play/Stop, Undo; Bluetooth Pair Button
INPUTSTwo (2) Balanced 1/4″ – XLR Combination
AUXILIARY INPUT1/8 in (3.5 mm) Stereo
OUTPUTTwo XLR Line Outputs Selectable For Channel 1/2, Stereo/Mono, and Ground Lift; One 3.5mm Stereo Headphone Output; USB Jack For Recording
EFFECTSEach Channel Has Room Reverb, Hall Reverb, Echo, Delay, Chorus, Vibratone, Delay+Chorus, and Delay+Reverb; All Effects Are Enhanced By SFX Circuitry and Side-Firing Speaker
LOOPER90-Second Looper with Record/Dub, Play/Stop, and Undo Buttons
CONNECTIVITYBluetooth and USB
CONNECTION TYPE1/4″
VOLTAGE120V
WATTAGE2 x 100 Watts

Hardware
CONTROL KNOBSBlack Lightly Texture Plastic with Easy-To-Read White Indicators
AMPLIFIER COVERINGDark Brown Textured Vinyl
CABINET MATERIALLightweight Plywood
GRILLE CLOTHDark Brown Woven Cloth with Embroidered Logo
HANDLELeather Strap
REAR CONTROL PANELPower, Mono/Stereo Select, Ground Lift, Channels 1 and 2 Combined/Separate Output Select, Reset, Firmware Update

Speakers
SPEAKERSOne 8″ Low-Frequency Driver, One High Frequency Compression Driver Horn and One 6.5″ Side-Radiating Speaker
TWEETEROne – Hi-Fi Compression Tweeter
TOTAL IMPEDANCE4 ohms

Measurements
DIMENSIONS13.50×18.90×22.50 IN
SHIPPING WEIGHT24.80 LB
PRODUCT DEPTH10.2″ (25.9 cm)
PRODUCT HEIGHT19.4″ (49.2 cm)
PRODUCT WIDTH15.7″ (39.9 cm)
SHIPPING LENGTH22.50 IN
SHIPPING HEIGHT13.50 IN
SHIPPING WIDTH18.90 IN

Accessories
FOOTSWITCH4-Button MGT-4: Effects Select, Looper Control, Tap and Tuner (Use With Included Magnetic Overlay Label), P/N: 0994071000 (Footswitch Not Included)
