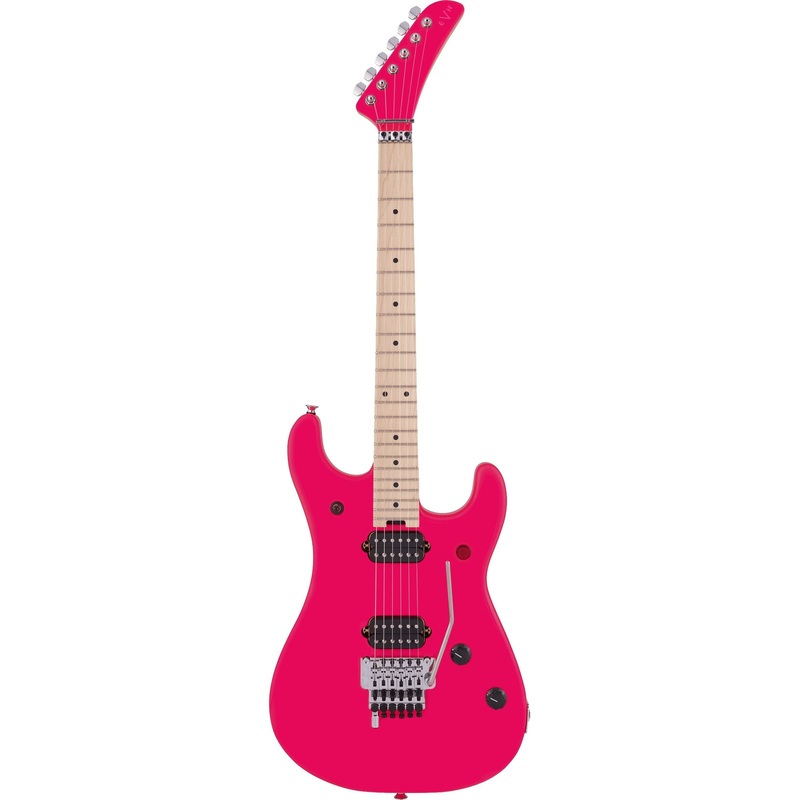

EVH 5150 Series Standard Electric Guitar, Maple Fingerboard – Neon Pink

Unleash Your Inner Shredder – The EVH 5150 Series Standard Electric Guitar, Maple Fingerboard in Neon Pink

Engineered for speed, comfort and full-throttle attitude, the reimagined 5150 Series Standard is an iconic blast from the past that blends both throwback and modernized features. Like its predecessor, the 5150 Standard features a modified Strat-style basswood body with a deeper upper body curve. The graphite-reinforced bolt-on quartersawn maple neck features a comfortable modified C profile, hand-rubbed satin urethane back finish, heel-mount truss rod adjustment wheel and color matched hockey stick headstock with EVH logo decal. Built for smooth and speedy playability, the 12-16 compound radius ebony fingerboard has 22 jumbo frets and cream dot inlays.

25.5 scale length
• Modified Strat-style basswood body with deeper upper body curve
• Graphite-reinforced bolt-on quartersawn maple neck
• Neck is carved and rolled to Eddie Van Halens specifications with hand-rubbed satin urethane back finish
• 12-16 compound radius ebony fingerboard with 22 jumbo frets and cream dot inlays
• Convenient heel-mount truss rod adjustment spoke wheel
• Direct mount EVH Wolfgang bridge and neck humbucking pickups
• Top-mount EVH-branded Floyd Rose bridge and R3 locking nut
• EVH D-Tuna
• Three-way toggle switch, kill switch, volume control (500K EVH Bourns Low Friction Pot) with treble bleed circuit and tone control (250K EVH Bourns High Friction Pot)

While the famed striped original had a single humbucking bridge pickup only, the all-new 5150 is outfitted with an HH pickup configuration controlled by a three-way toggle switch on the upper bout. The custom designed EVH Wolfgang Alnico 2 humbucking bridge pickup delivers the perfect amount of punch and articulation with sweet sustain and thick chunky rhythms in a perfectly balanced EQ curve. The EVH Wolfgang Alnico 2 humbucker neck pickup serves up no-nonsense, balls to the wall overdrive and endless sustain without skimping on articulate cleans when the volume is rolled down. A custom designed low friction volume knob creates even-volume tapering for the smoothest volume swells, while the high friction tone knob will stay in place even if accidentally bumped. An added new feature comes in the way of a lower bout kill switch, allowing you to mute your guitar for those stutter, rhythmic effects think You Really Got Me.

Decked out with a dive-bomb certified EVH-branded top-mount Floyd Rose bridge, the locking tailpiece features fine tuners for each string and a patented EVH D-Tuna for switching back and forth from drop-D to standard tuning in an instant.

SPECIFICATIONS

Body

• Body: Basswood
• Body Finish: Gloss Urethane
• Body Shape: 5150
• Body Material: Basswood

Neck

• Headstock: EVH Hockey Stick
• Neck Material: Quartersawn Maple
• Neck Finish: Hand-Rubbed Satin Urethane
• Neck Shape: EVH Modified “C” Backshape
• Neck Construction: Bolt-On with Graphite Reinforcement
• Neck Thickness: .790″ at 3rd Fret & .810″ at 12th Fret
• Fingerboard Radius: 12″-16″ Compound Radius (304.8 mm to 406.4 mm)
• Fingerboard Material: Maple
• Position Inlays: Black Dot
• Side Dots: Black
• Scale Length: 25.5″ (64.77 cm)
• Fret Size: Jumbo
• Number of Frets: 22
• Truss Rod Nut: Heel-Mount Truss Rod Adjustment Wheel
• String Nut: Floyd Rose R3 Locking
• Nut Width: 1.685″ (42.8 mm)
• Nut Material: Floyd Rose R3 Locking

Hardware

• Bridge: Top-Mount EVH-Branded Floyd Rose Locking Tremolo with EVH D-Tuna
• Tremolo Block: Brass
• Pickup Covers: Black
• Control Knobs: Black Knurled with White Indicator
• Switch Tip: Black
• Hardware Finish: Chrome
• Tuning Machines: EVH-Branded Gotoh
• String Trees: Floyd Rose Retainer Bar
• Tremolo Arm: Floyd Rose 1000 Series Locking
• Neck Plate: 4-Bolt Standard
• Strap Button: Oversized

Electronics

• Bridge Pickup: Direct Mount EVH Wolfgang Humbucking
• Neck Pickup: Direct Mount EVH Wolfgang Humbucking
• Pickup Configuration: HH
• Controls: Volume (500K EVH Bourns Low Friction Pot) with Treble Bleed Circuit, Tone (250K EVH Bourns High Friction Pot)
• Switching: 3-Position Toggle
• Position 1. Bridge Pickup
• Position 2. Bridge and Neck Pickups
• Position 3. Neck Pickup
• Auxiliary Switching: Kill Switch

Miscellaneous

• Included Accessories: Tremolo Arm, Hex Keys & User Manual
• Truss Rod: 2.5 mm Hex

Manufacturer:EVH
Model:5108001519
SKU:I647737-0-WHXA
